Mezzanine Tech Specs

Mezzanine 200 Series

Mezzanine Appliance

  1. Form Factor

    In-room mini appliance

  2. Video Inputs

    9 simultaneous inputs:
    –3 x HDMI streams (common formats: 1080p60, 720p60)
    –6 x Network video streams (Screencast)

  3. Video Outputs

    2 x HDMI Outputs

  4. Supported Format:

    1080p60

  5. Audio Inputs

    3 x audio streams (HDMI input)

  6. Audio Outputs

    1 x 3.5mm stereo output

  7. Network Interface
    Connections

    1 x Gigabit Network Port (LAN)
    1 x USB to Gigabit Network Adapter (Private)

  8. Hard Drives

    512 GB solid-state drive

  9. Operating System

    Ubuntu 16.04 LTS

  10. Dimension

    211 x 116 x 28 mm (W x D x H)

  11. Weight

    0.62 kg

  12. Power

    V: 100-240 V
    Hz: 50-60 Hz
    W: 120 W

  13. Operating Environment

    0°C—40°C (32°F—104°F)

Mezzanine Perception Appliance (not required in all configurations)

  1. Form Factor

    In-room mini appliance

  2. Network Interface
    Connections

    1 x Gigabit Network Port (Private)

  3. Other Connections

    1 x Bluetooth LE Receiver
    Hard Drives
    120 GB solid-state drive

  4. Hard Drives

    120 GB solid-state drive

  5. Operating System

    Ubuntu 16.04 LTS

  6. Dimension

    115 x 111 x 32 mm
    (W x D x H)

  7. Weight

    0.64 kg

  8. Power

    V: 100-240 V
    Hz: 50-60 Hz
    W: 65 W

  9. Operating Environment

    0°C—40°C
    (32°F—104°F)

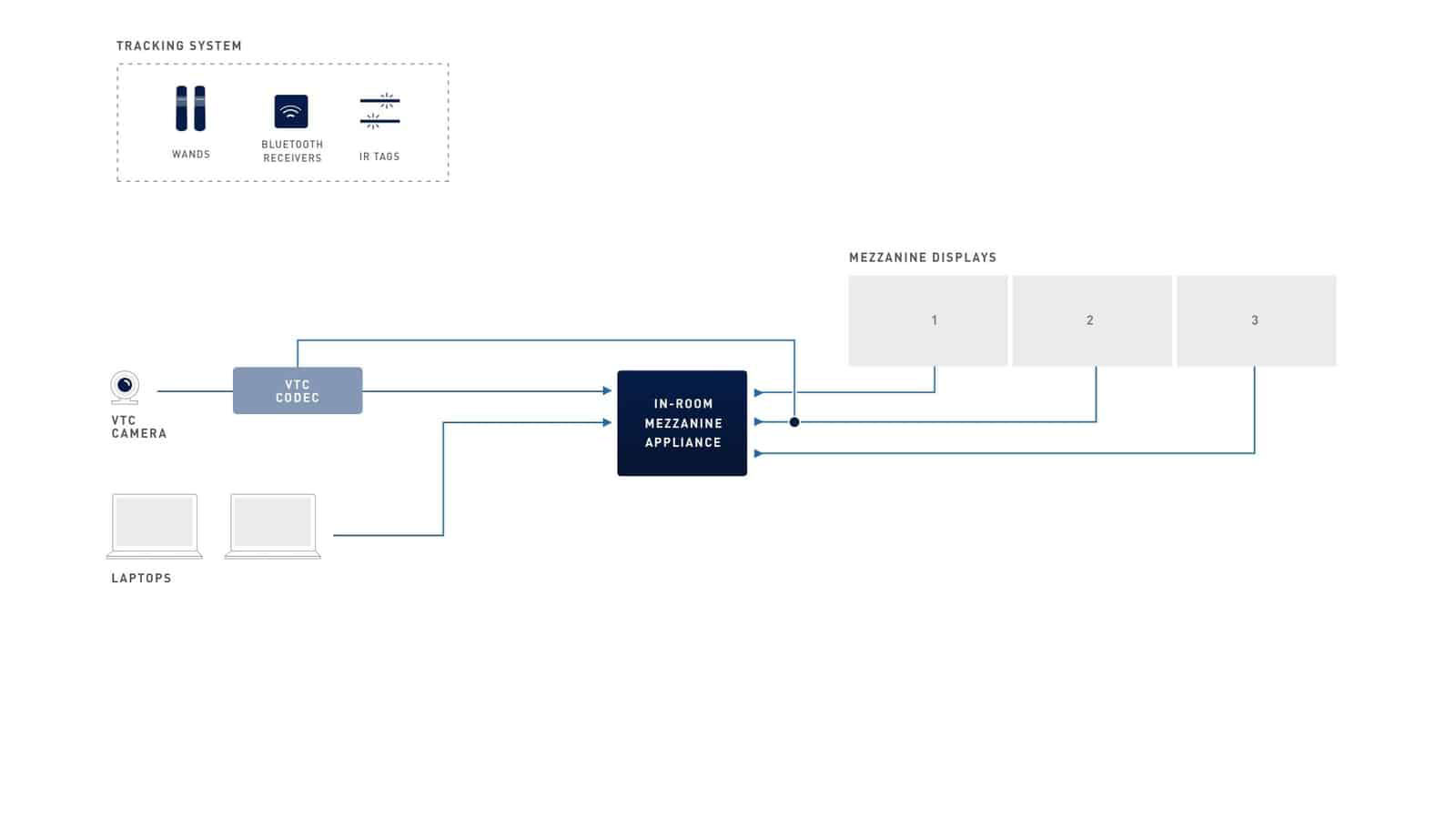

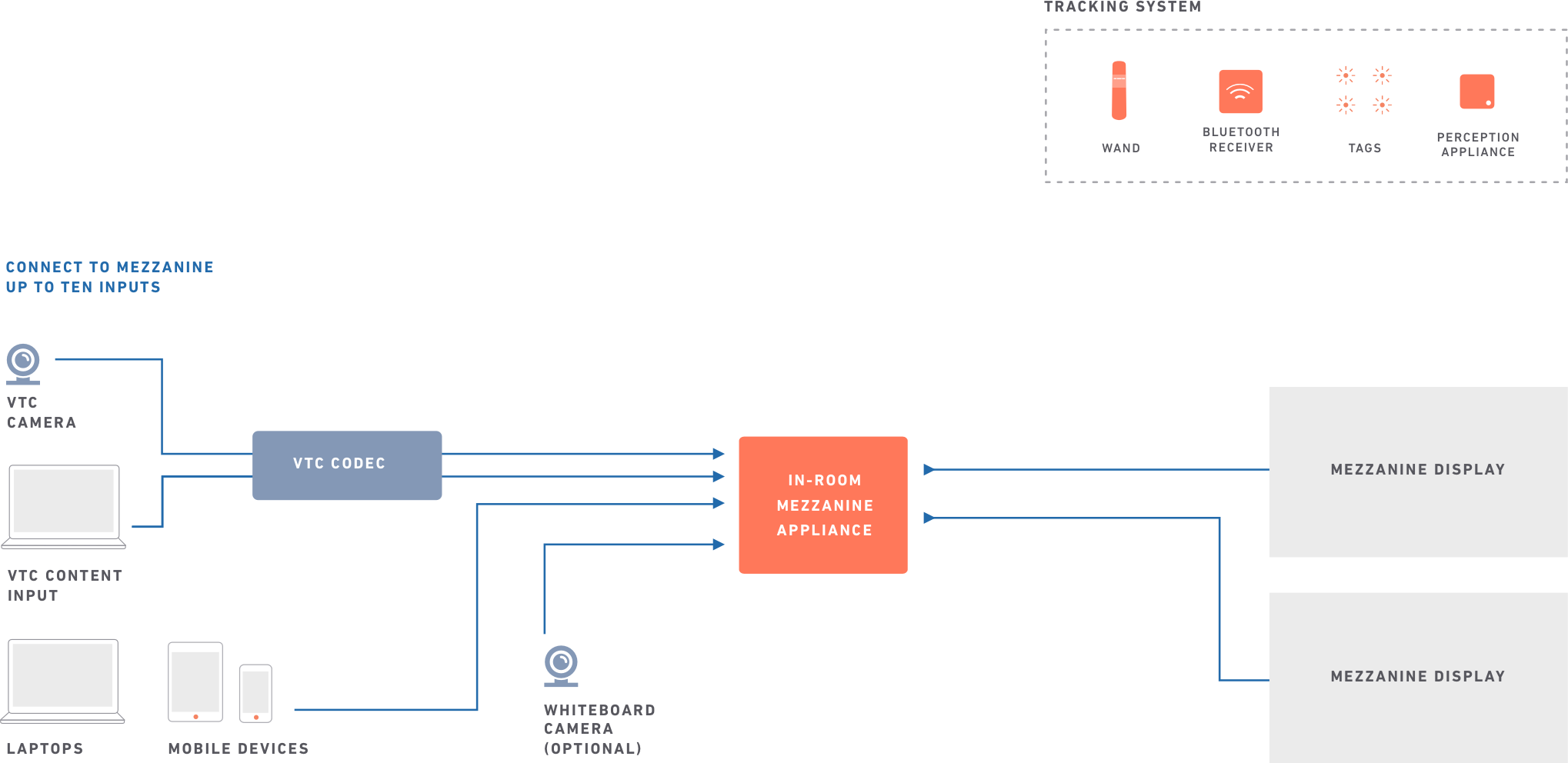

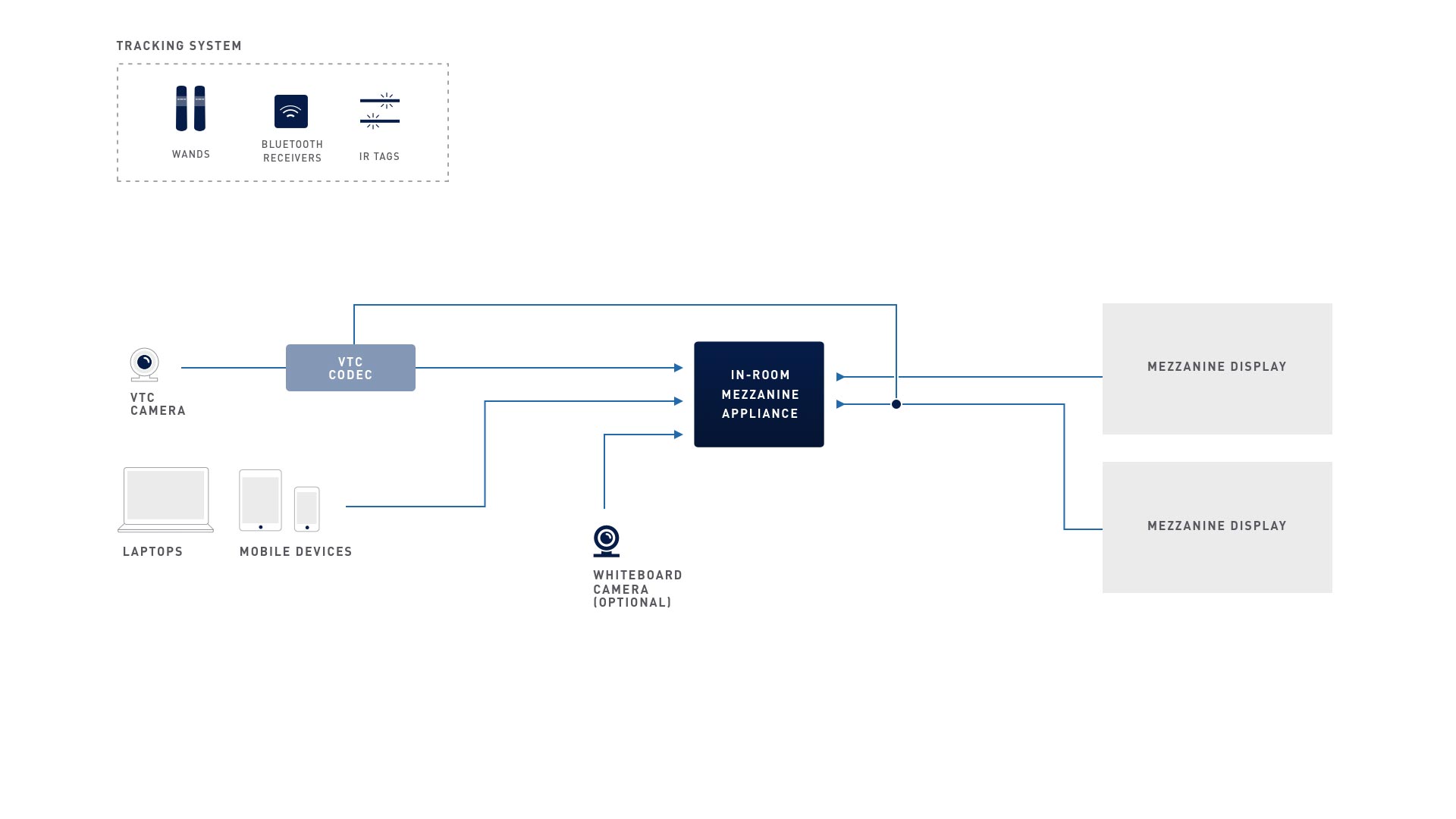

Logical Diagram

Mezzanine Kit Components

  1. Mezzanine Appliance (1)

    The hub of the Mezzanine experience. Drive two displays with a Mezzanine mini appliance. Includes video input and output support.

  2. Perception appliance (1)

    The hub for the optical tracking system. Not required for configurations with two screens side-by-side.

  3. Optical Wand (1)

    A gestural control device used to interact with the Mezzanine Workspace.

  4. Bluetooth LE Receiver (1)

    A Bluetooth LE radio receiver used to communicate with an optical wand.

  5. Tags
    (3-4 tags/display or
    4 tags total for two screens
    side-by-side)

    Display mounted array of IR LEDs used to enable the gestural control of Mezzanine.

Peripherals (Sold Separately)

  1. Displays & Mounts (2)

    Recommended sizes: 55” – 65”
    Minimum size: 55”

  2. Displays & Mounts (2)

    Standards-based VTC System
    Preferred integration: Cisco, Polycom, Lifesize

  3. Audio System
    (as needed)

    Speakers

  4. Power Support
    (as needed)

    Power Distribution Unit

  5. Cabling
    (as needed)

    HDMI, Audio, Power, Ethernet cabling

  6. Whiteboard Camera
    (optional)

    An IP camera used to stream or capture an analog whiteboard surface. (Model: Avigilon 5.0L-H4A-B3)

  7. (1)

    PoE Injector in support of the IP camera

Mezzanine 300 Series

Mezzanine Appliance

  1. Form Factor

    In-room mini appliance

  2. Video Inputs

    9 Simultaneous Inputs:
    –3 x HDMI streams (common supported formats:1080p60, 720p60)
    –1 x IP camera stream
    –5 x network video streams (Screencast)

  3. Video Outputs

    3 x HDMI outputs
    Supported Format: 1080p60

  4. Supported Format:

    1080p60

  5. Audio Inputs

    3 x audio streams (HDMI input)

  6. Audio Outputs

    1 x 3.5mm stereo output

  7. Network Interface
    Connections

    1 x Gigabit Network Port (LAN)
    1 x USB to Dual Gigabit Network Adapter (Private)

  8. Hard Drives

    512 GB solid-state drive

  9. Operating System

    Ubuntu 16.04 LTS

  10. Dimension

    211 x 116 x 28 mm
    (W x D x H)

  11. Weight

    0.62 kg

  12. Power

    V: 100-240 V
    Hz: 50-60 Hz
    W: 120 W

  13. Operating Environment

    0°C—40°C (32°F—104°F)

Mezzanine Perception Appliance

  1. Form Factor

    In-room mini appliance

  2. Network Interface
    Connections

    1 x Gigabit Network Port (Private)

  3. Other Connections

    2 x Bluetooth LE Reciever

  4. Hard Drives

    120 GB solid-state drive

  5. Operating System

    Ubuntu 16.04 LTS

  6. Dimension

    115 x 111 x 32 mm
    (W x D x H)

  7. Weight

    0.64 kg

  8. Power

    V: 100-240 V
    Hz: 50-60 Hz
    W: 65 W

  9. Operating Environment

    0°C—40°C
    (32°F—104°F)

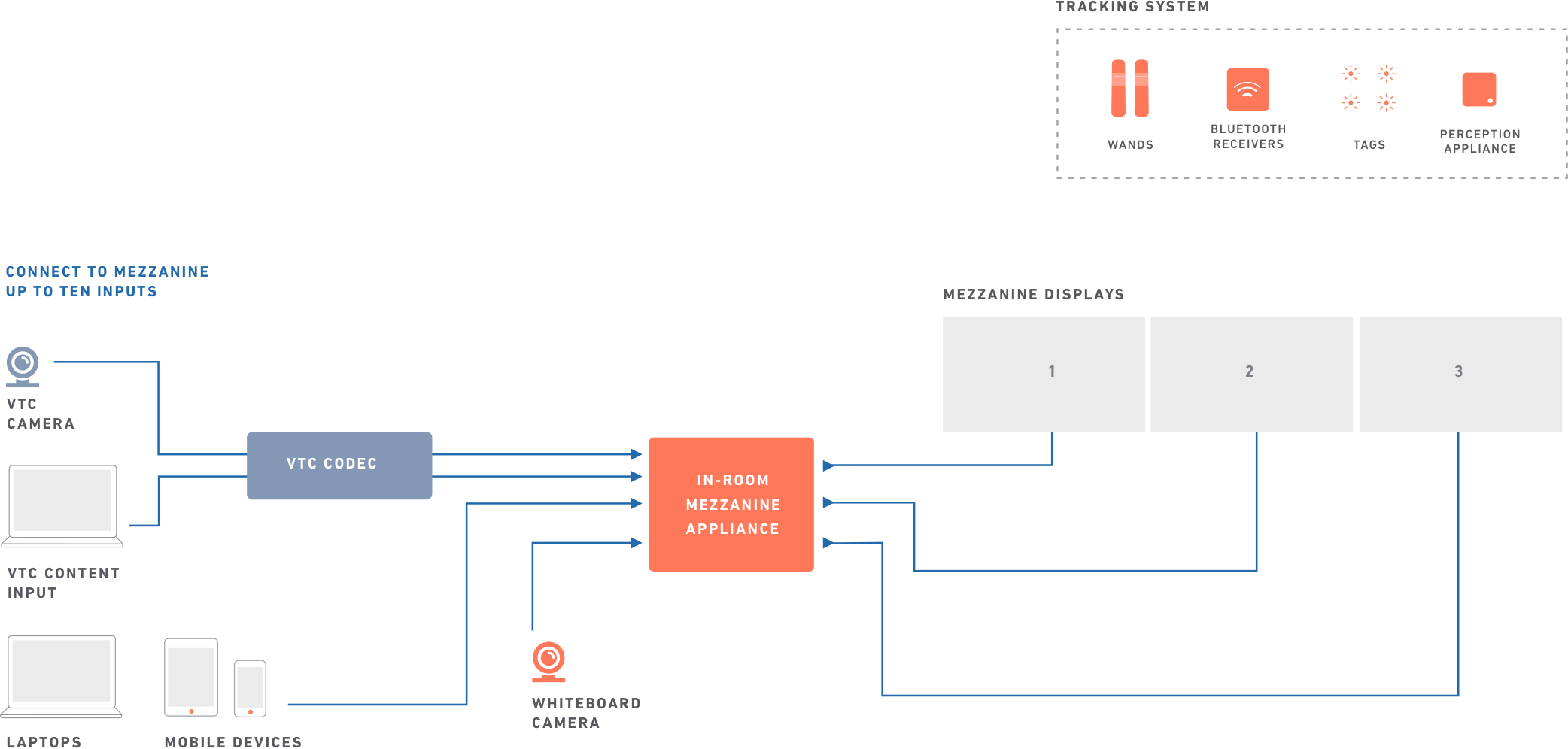

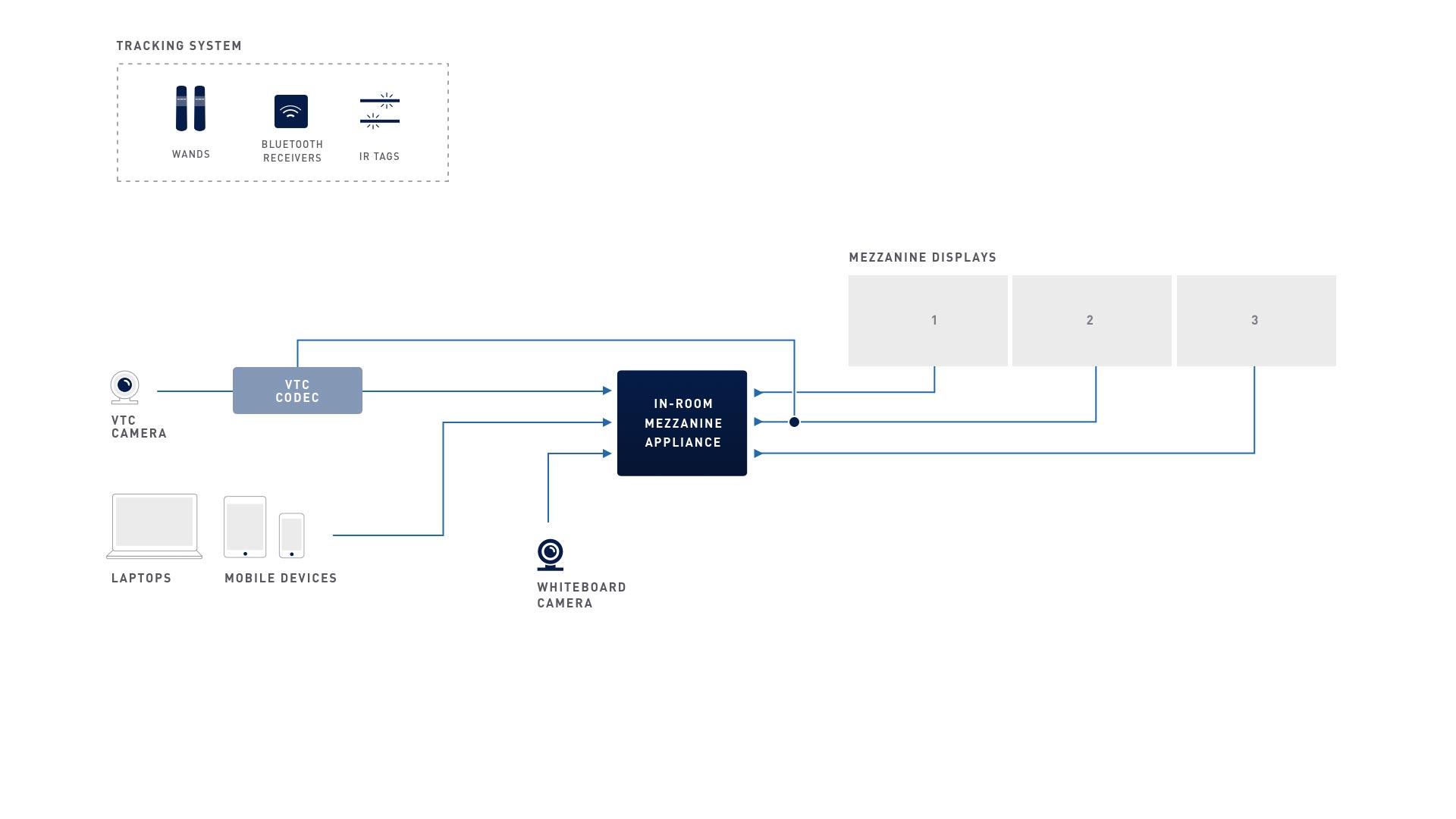

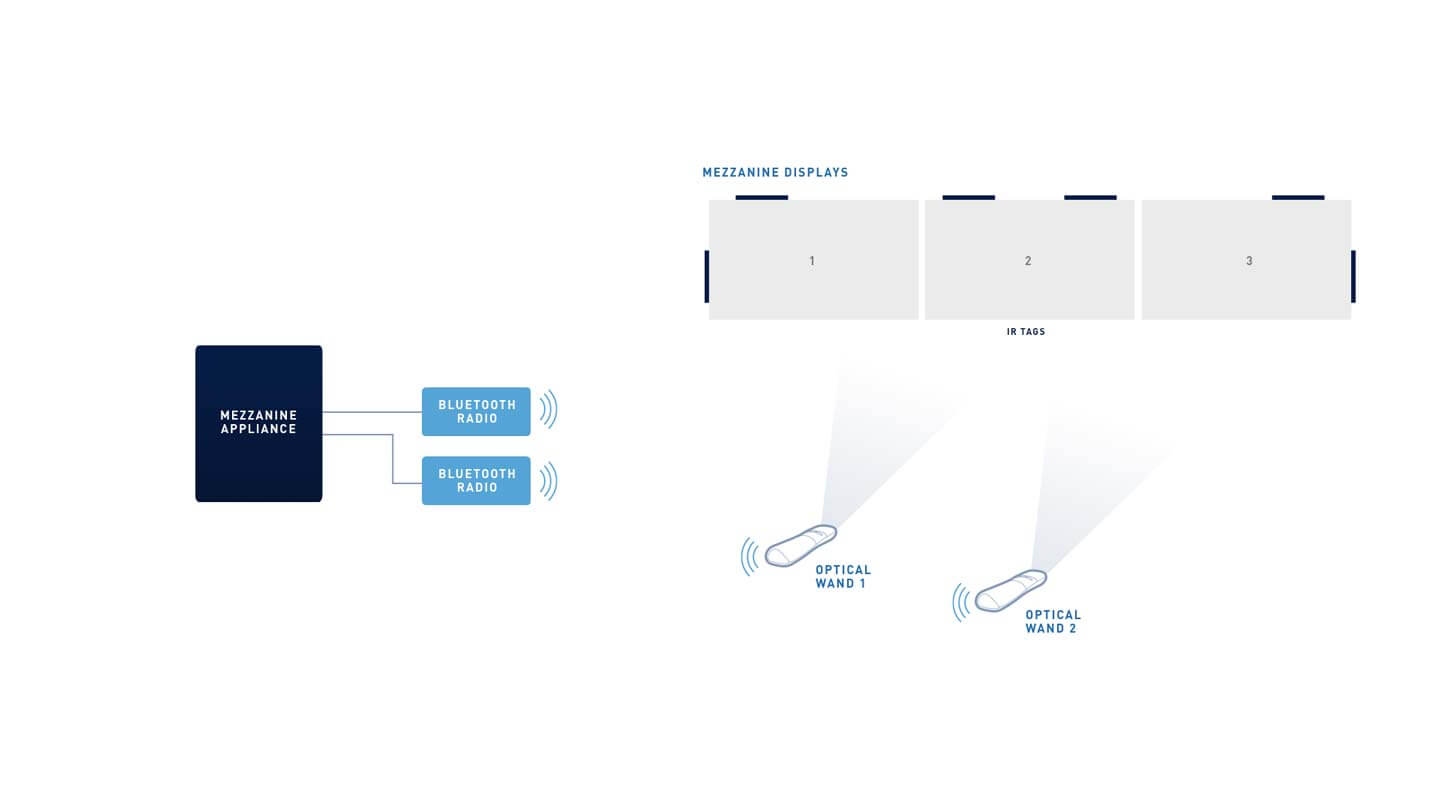

Logical Diagram

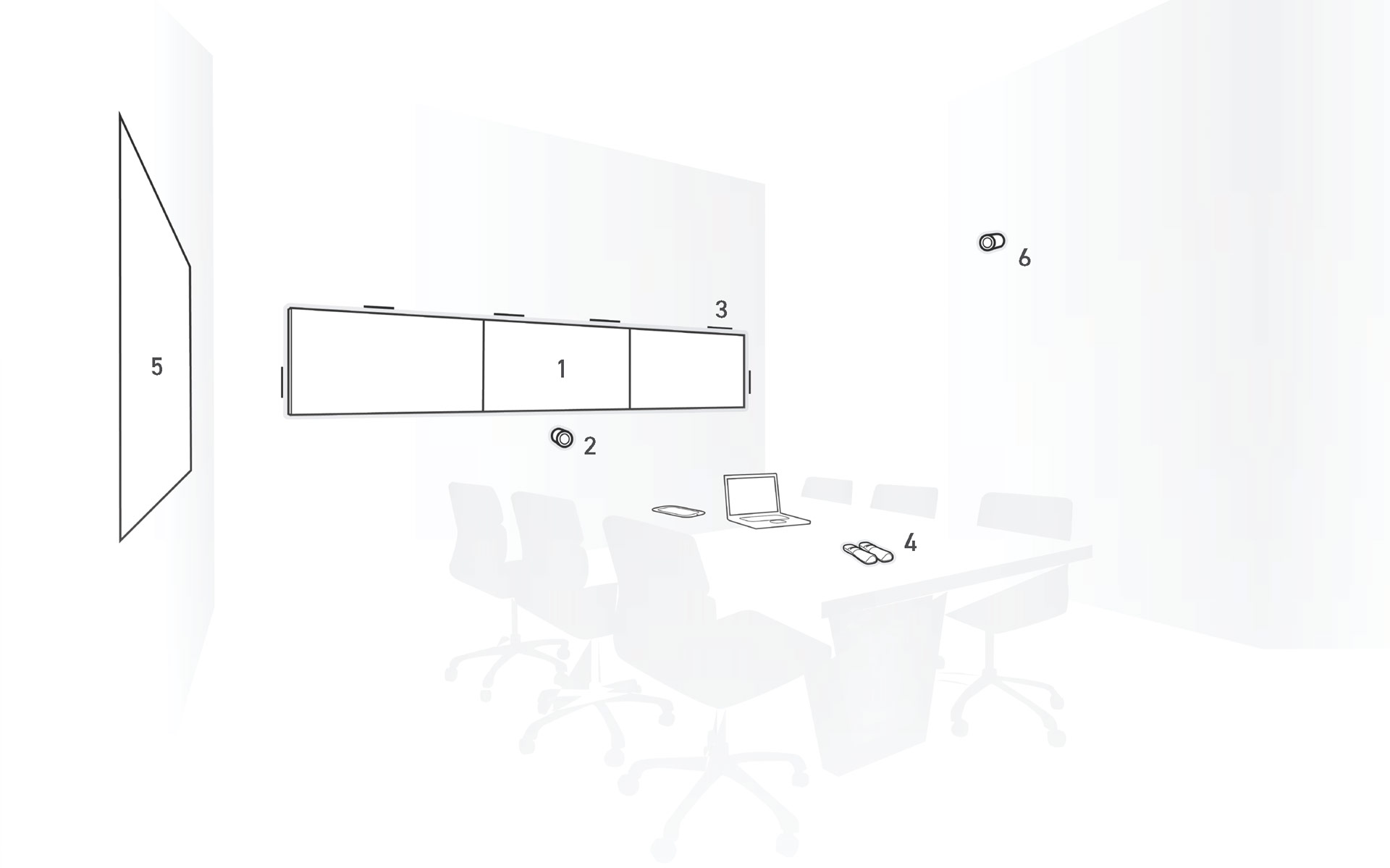

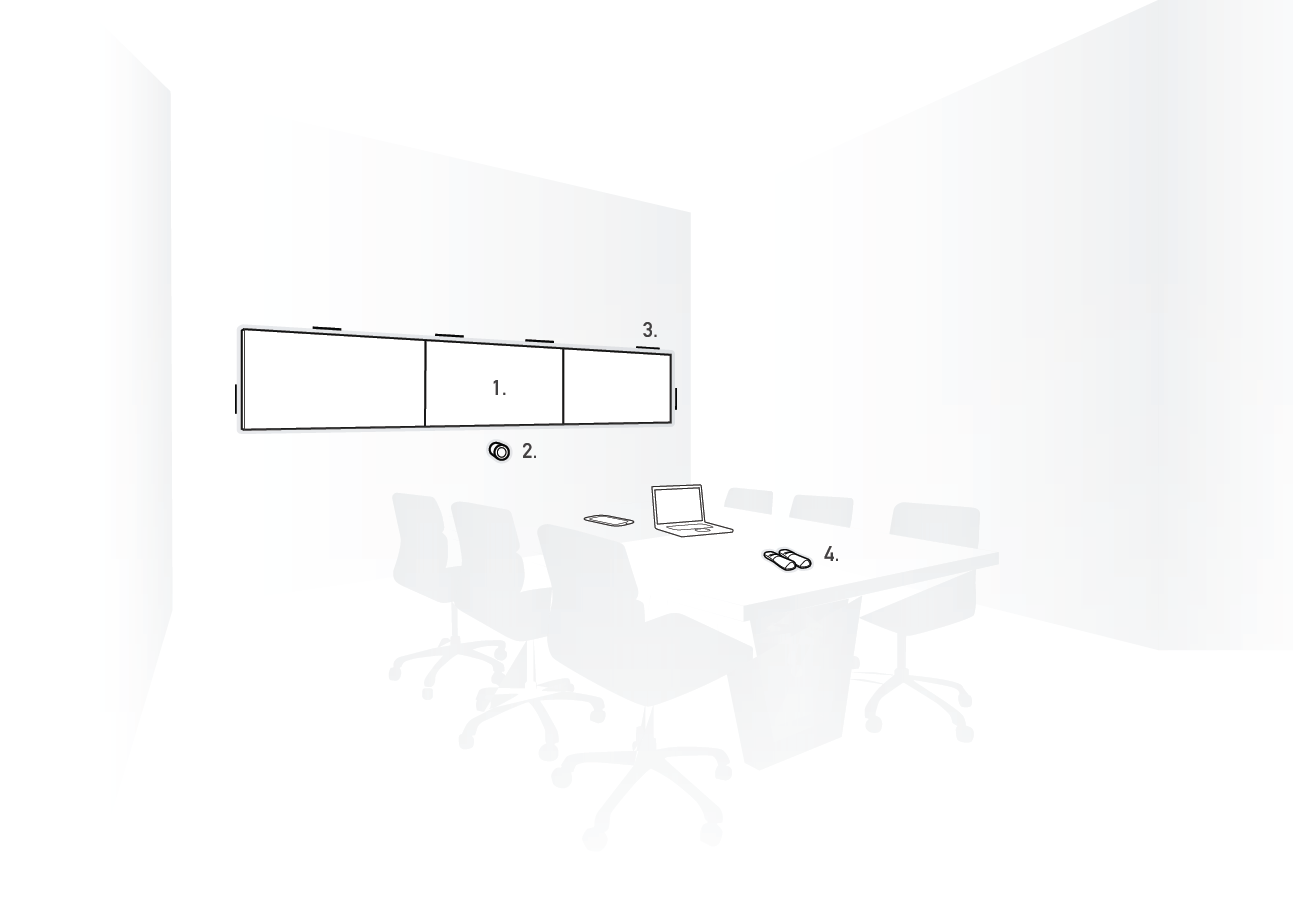

Mezzanine Kit Components

  1. Mezzanine Appliance (1)

    The hub of the Mezzanine experience. Drive two displays with a Mezzanine mini appliance. Includes video input and output support.

  2. Perception appliance (1)

    The hub for the optical tracking system.

  3. Optical Wand (2)

    A gestural control device used to interact with the Mezzanine Workspace.

  4. Bluetooth LE Receiver (2)

    A Bluetooth LE radio receiver used to communicate with an optical wand.

  5. Tags
    (2-3 tags/display)

    Display mounted array of IR LEDs used to enable the gestural control of Mezzanine.

  6. Whiteboard Camera (1)

    An IP camera used to stream or capture an analog whiteboard surface.(Model: Avigilon 5.0L-H4A-B3)

  7. (1)

    PoE injector in support of the IP camera

Peripherals (Sold Separately)

  1. Displays & Mounts (3)

    Recommended sizes: 55” – 65”
    Minimum size: 55”

  2. Video Teleconferencing (1)

    Standards-based VTC System
    Preferred integration: Cisco, Polycom, Lifesize

  3. Audio System
    (as needed)

    Speakers

  4. Power Support
    (as needed)

    Power Distribution Unit

  5. Cabling
    (as needed)

    HDMI, Audio, Power, Ethernet cabling

Mezzanine 600 Series

Mezzanine Appliance

  1. Form Factor

    In-room mini appliance

  2. Video Inputs

    10 Simultaneous Inputs
    –4 x HDMI streams (common supported formats: 1080p60, 720p60)
    –1 x IP camera stream
    –5 x network video streams (Screencast)

  3. Video Outputs

    3 x HDMI outputs

  4. Supported Format:

    1080p60

  5. Audio Inputs

    4 x audio streams (HDMI input)

  6. Audio Outputs

    1 x 3.5mm stereo output

  7. Network Interface
    Connections

    1 x Gigabit Network Port

  8. Hard Drives

    512 GB solid-state drive

  9. Operating System

    Ubuntu 16.04 LTS

  10. Dimension

    211 x 116 x 28 mm
    (W x D x H)

  11. Weight

    0.62 kg

  12. Power

    V: 100-240 V
    Hz: 50-60 Hz
    W: 120 W

  13. Operating Environment

    0°C—40°C (32°F—104°F)

Mezzanine Cokboard Appliance

  1. Form Factor

    In-room mini appliance

  2. Video Outputs

    3 x HDMI outputs

  3. Supported Format:

    1080p60

  4. Network Interface
    Connections

    1 x Gigabit Network Port

  5. Hard Drives

    512 GB solid-state drive

  6. Operating System

    Ubuntu 16.04 LTS

  7. Dimension

    211 x 116 x 28 mm
    (W x D x H)

  8. Weight

    0.62 kg

  9. Power

    V: 100-240 V
    Hz: 50-60 Hz
    W: 120 W

  10. Operating Environment

    0°C—40°C (32°F—104°F)

Mezzanine Perception Appliance

  1. Form Factor

    In-room mini appliance

  2. Network Interface
    Connections

    1 x Gigabit Network Port (Private)

  3. Other Connections

    2 x Bluetooth LE Receivers

  4. Hard Drive

    120 GB solid-state drive

  5. Operating System

    Ubuntu 16.04 LTS

  6. Dimension

    115 x 111 x 32 mm
    (W x D x H)

  7. Weight

    0.64 kg

  8. Power

    V: 100-240 V
    Hz: 50-60 Hz
    W: 65 W

  9. Operating Environment

    0°C—40°C
    (32°F—104°F)

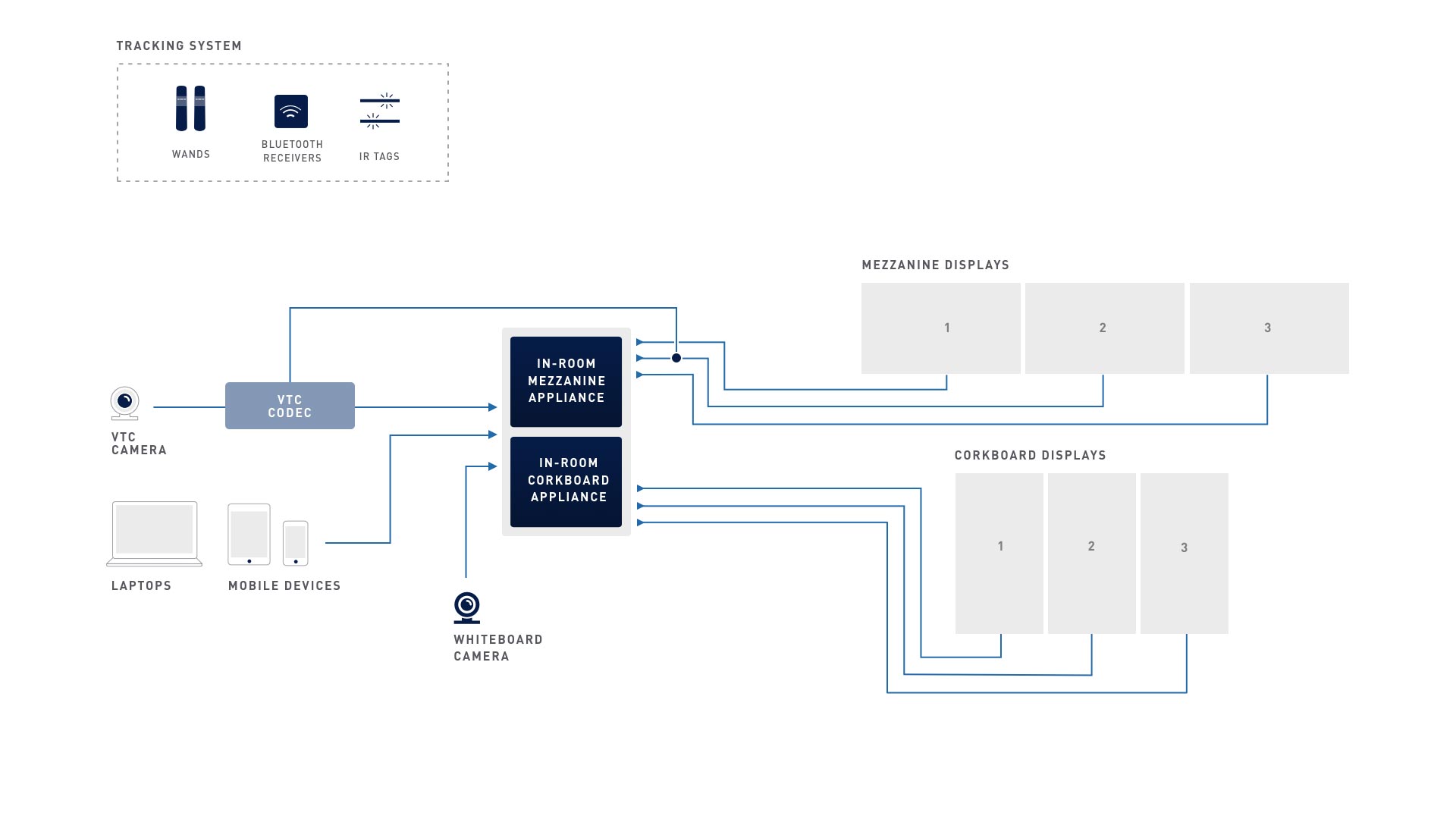

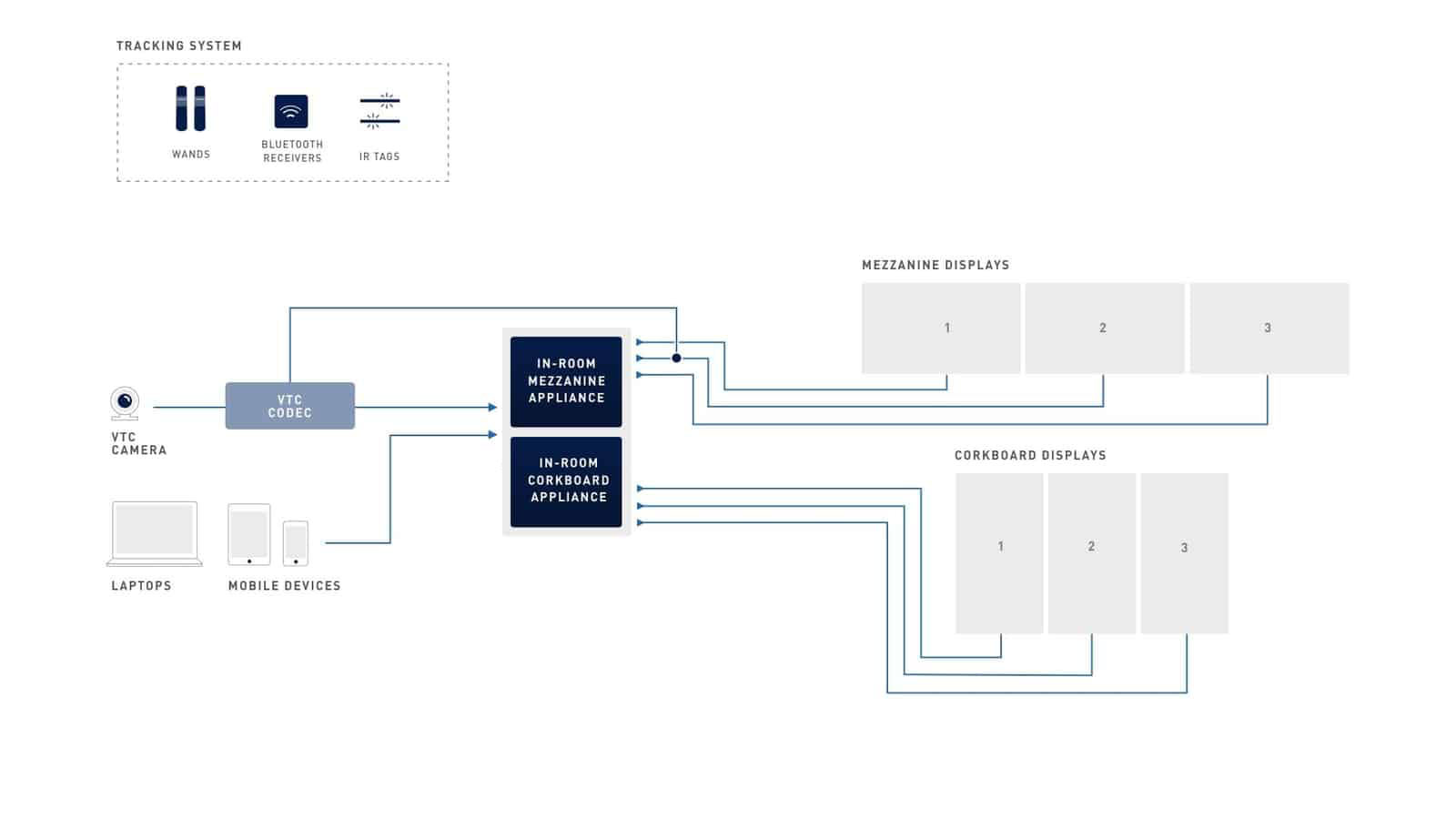

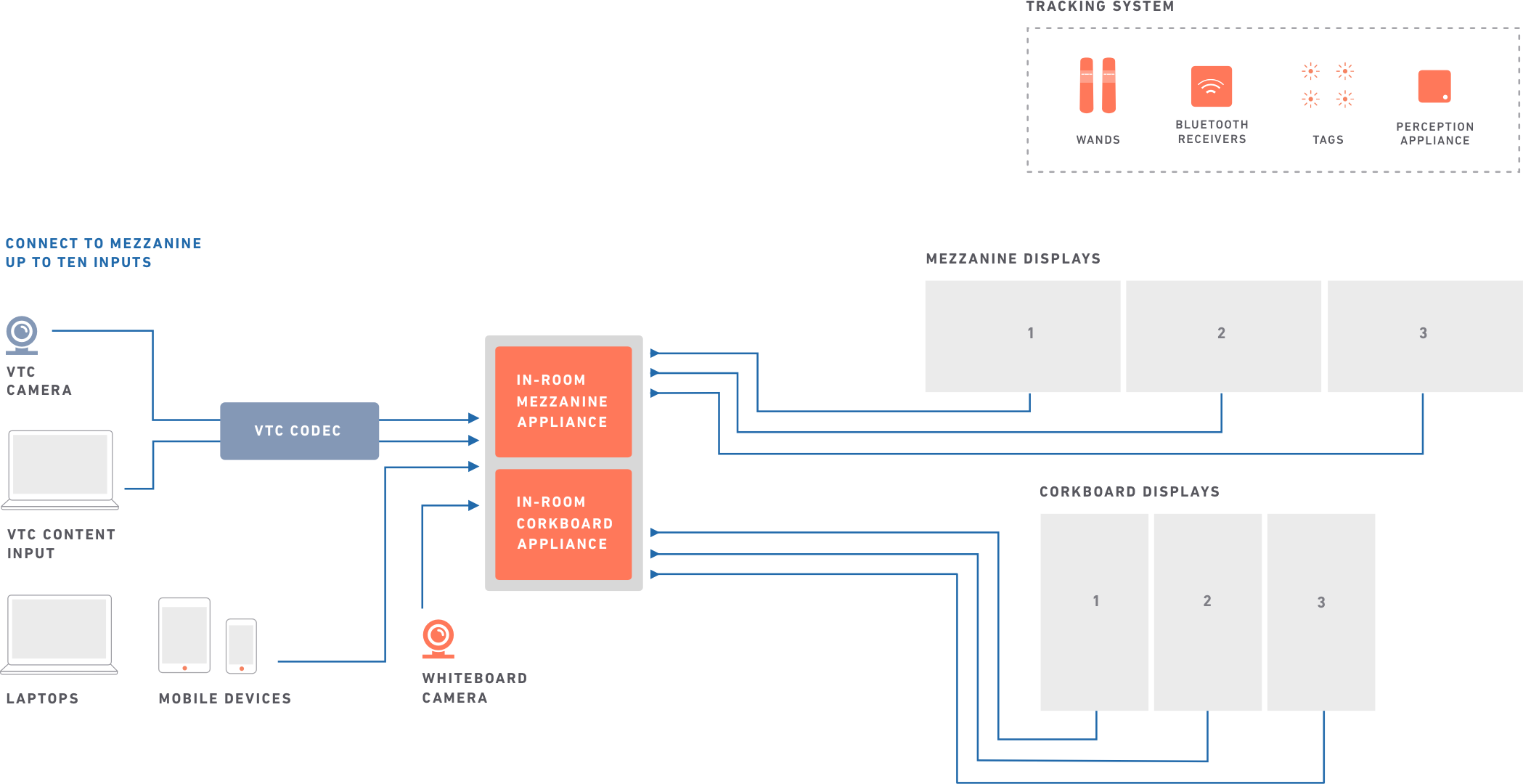

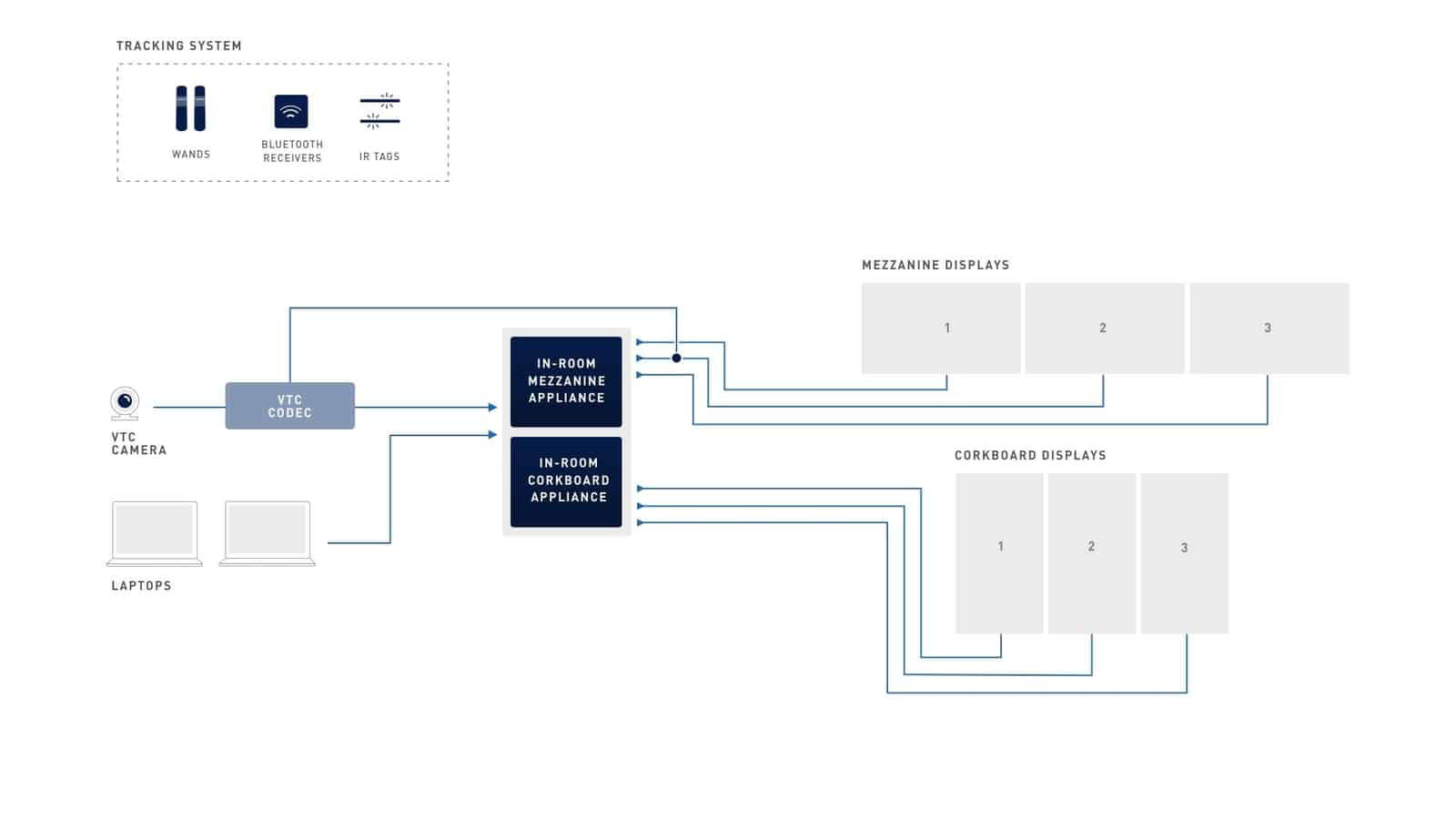

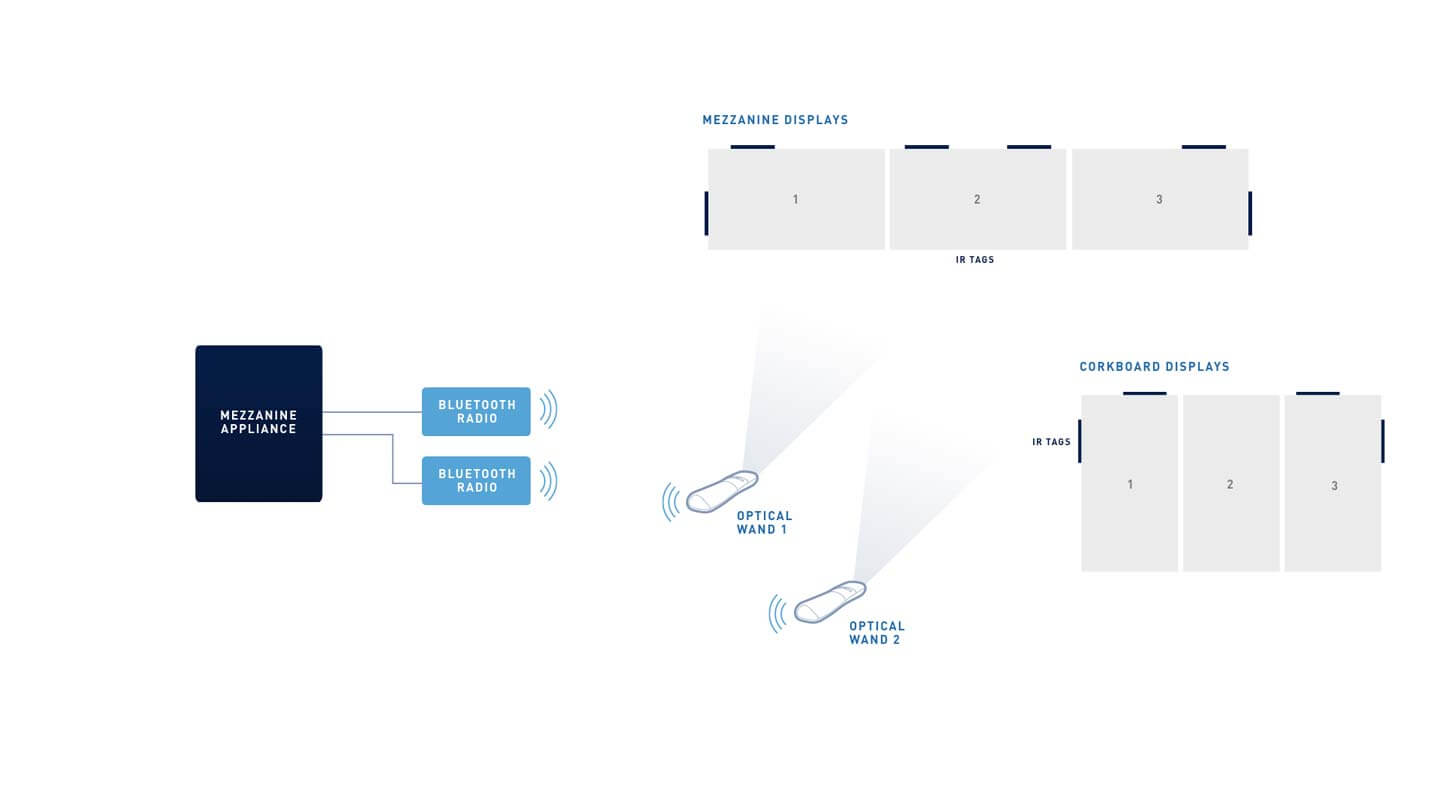

Logical Diagram

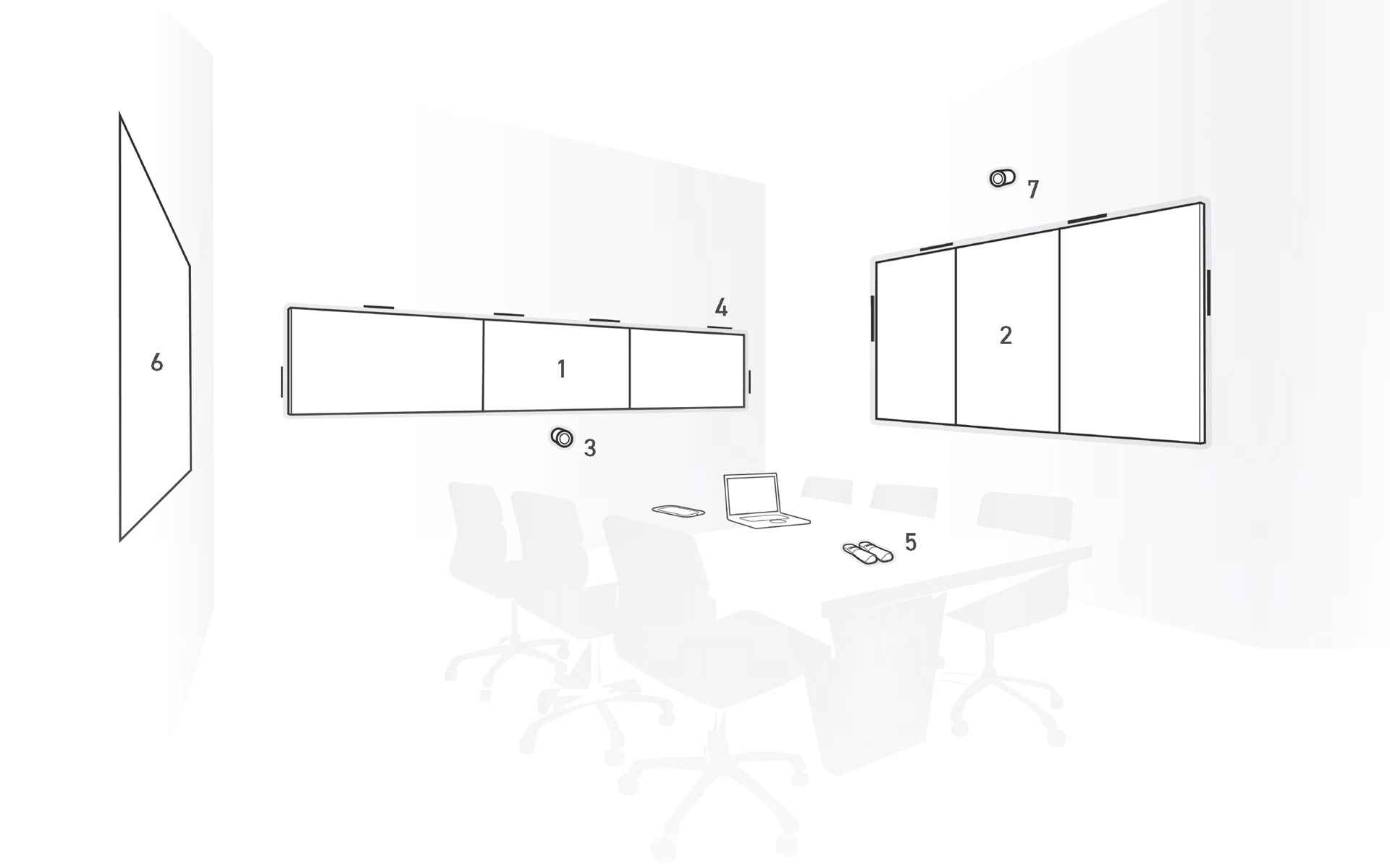

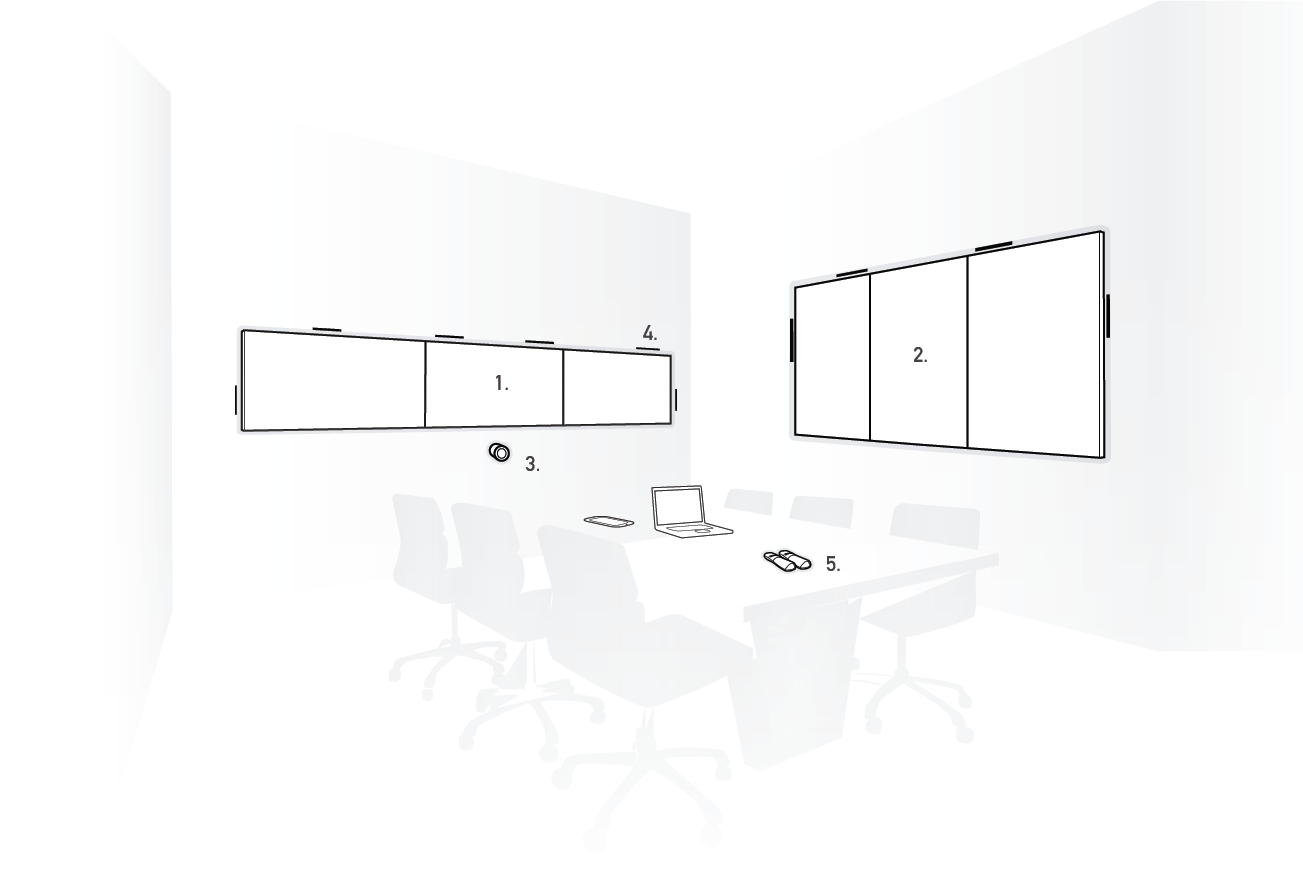

Mezzanine Kit Components

  1. Mezzanine Appliance (1)

    The hub of the Mezzanine experience. Drive two displays with a Mezzanine mini appliance. Includes video input and output support.

  2. Corkboard Appliance (1)

    Extend your Mezzanine experience by adding up to three more displays using a Corkboard mini appliance.

  3. Perception appliance (1)

    The hub for the optical tracking system.

  4. Optical Wand (2)

    A gestural control device used to interact with the Mezzanine Workspace.

  5. Bluetooth LE Receiver (2)

    A Bluetooth LE radio receiver used to communicate with an optical wand.

  6. Tags
    (2-4 tags/display)

    Display mounted array of IR LEDs used to enable the gestural control of Mezzanine.

  7. Whiteboard Camera (1)

    An IP camera used to stream or capture an analog whiteboard surface.

Peripherals (Sold Separately)

  1. Displays & Mounts (Up to 6)

    Recommended sizes: 55” – 65”
    Minimum size: 55”

  2. Video Teleconferencing (1)

    Standards-based VTC System
    Preferred integration: Cisco, Polycom, Lifesize

  3. PoE Network Switch (1)

    8-port (minimum) PoE network switch in support of Mezzanine’s Device Network

  4. Audio System
    (as needed)

    Speakers and Amplifier

  5. Power Support
    (as needed)

    Power Distribution Unit

  6. Cabling
    (as needed)

    HDMI, Audio, Power, Ethernet cabling

Mezzanine 650 Series

Mezzanine Appliance

  1. Form Factor

    2U rackmount appliance

  2. Video Inputs

    10 Simultaneous Inputs
    –4 x HDMI streams (common formats: 1080p60, 720p60)
    –1 x IP camera stream
    –5 x network video streams (Screencast)

  3. Video Outputs

    6 x HDMI outputs

  4. Supported Format:

    1080p60

  5. Audio Inputs

    4 x audio streams (HDMI input)

  6. Audio Outputs

    1 x 3.5mm stereo output

  7. Network Interface
    Connections

    1 x Gigabit Network Port (LAN)
    1 x Gigabit Network Port (Private)

  8. Other Connections

    1 x Serial port
    ‍2 x Tracking ports (Ultrasonic Tracking only)

  9. Hard Drives

    512 GB Solid-state drive

  10. Operating System

    Ubuntu 16.04 LTS

  11. Dimension

    482 x 514 x 84 mm
    (W x D x H)

  12. Weight

    10.89 kg

  13. Power

    V: 100-240 V
    Hz: 47-63 Hz
    W: 500W

  14. Operating Environment

    -5°C to 35°C
    (23°F to 95°F)

Perception Appliance (Optical Tracking Only)

  1. Form Factor

    In-room mini appliance

  2. Network Interface
    Connections

    1 x Gigabit Network Port (Private)

  3. Other Connections

    2 x Bluetooth LE Receivers

  4. Hard Drives

    120 GB solid-state drive

  5. Operating System

    Ubuntu 16.04 LTS

  6. Dimension

    115 x 111 x 32 mm
    (W x D x H)

  7. Weight

    0.64 kg

  8. Power

    V: 100-240 V
    Hz: 50-60 Hz
    W:65 W

  9. Operating Environment

    0°C—40°C (32°F—104°F)

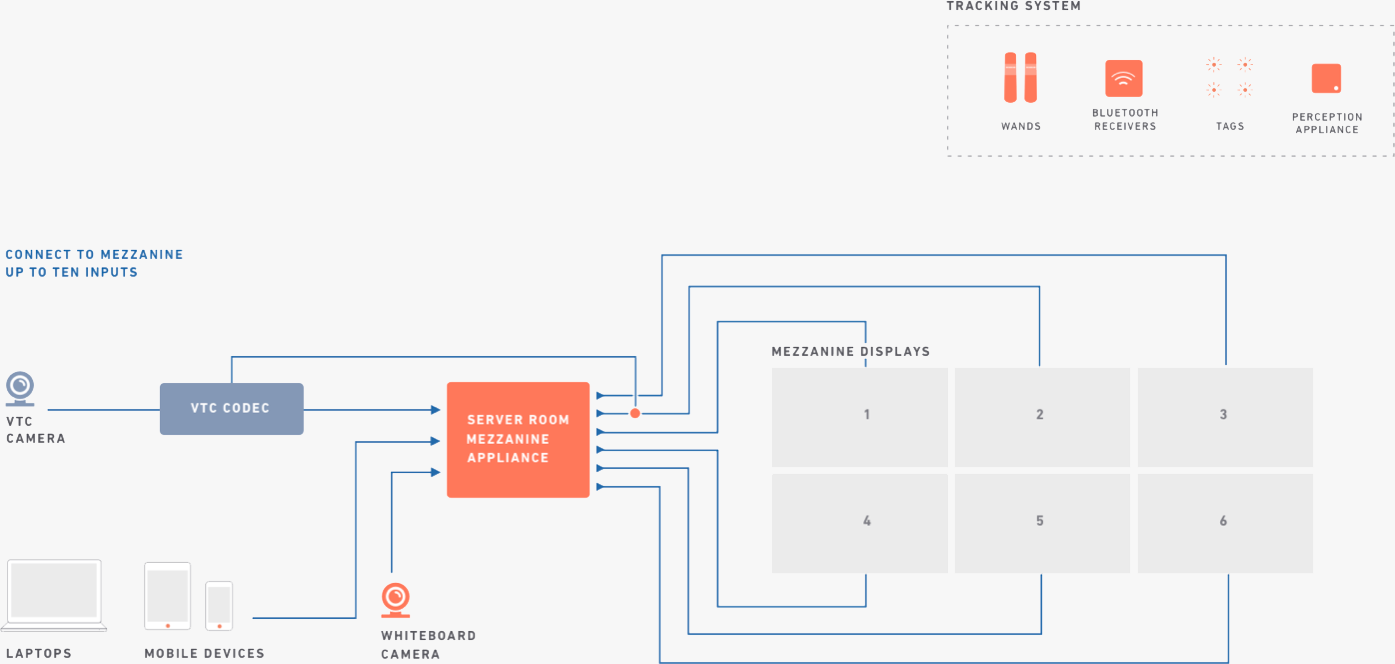

Logical Diagram

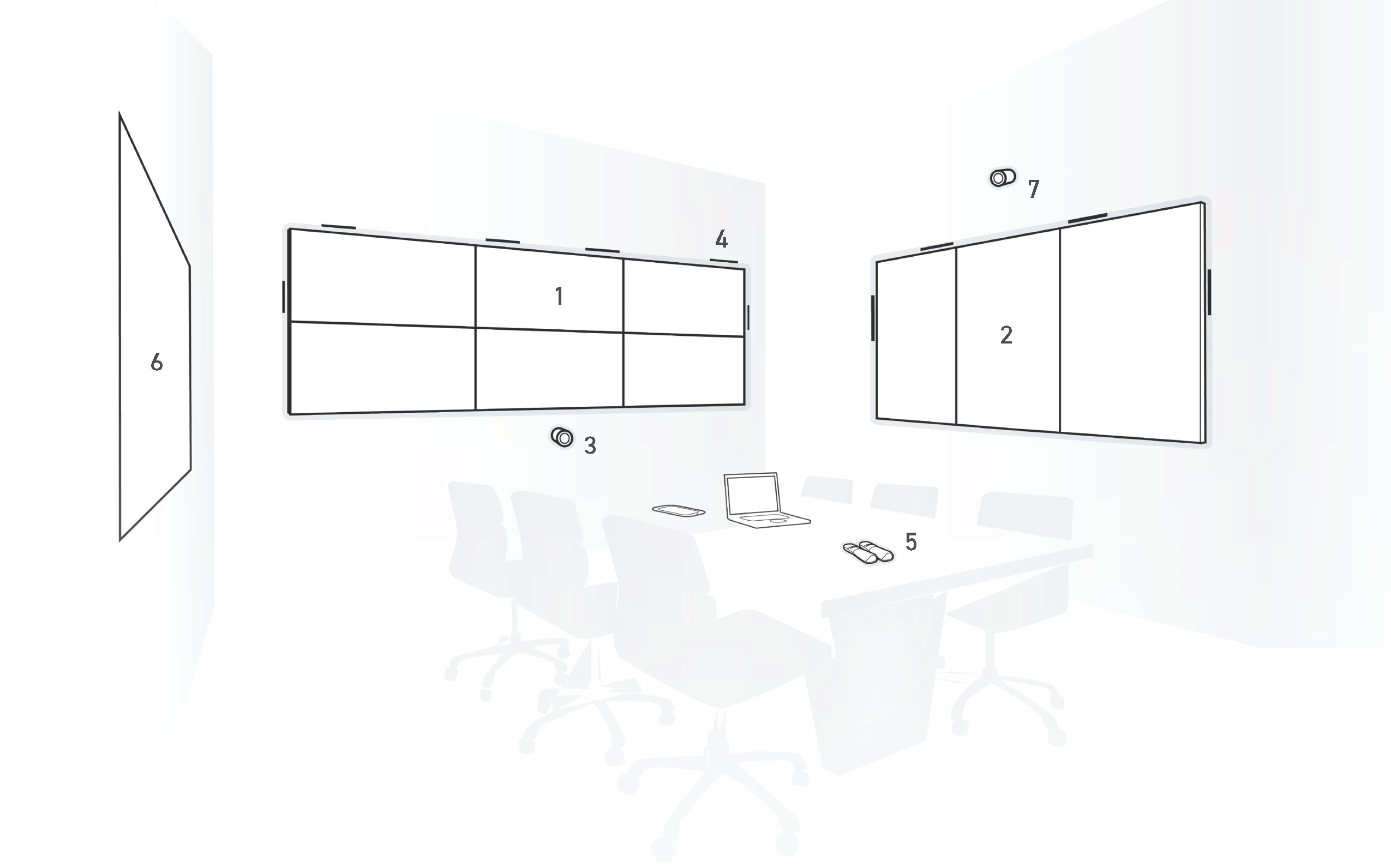

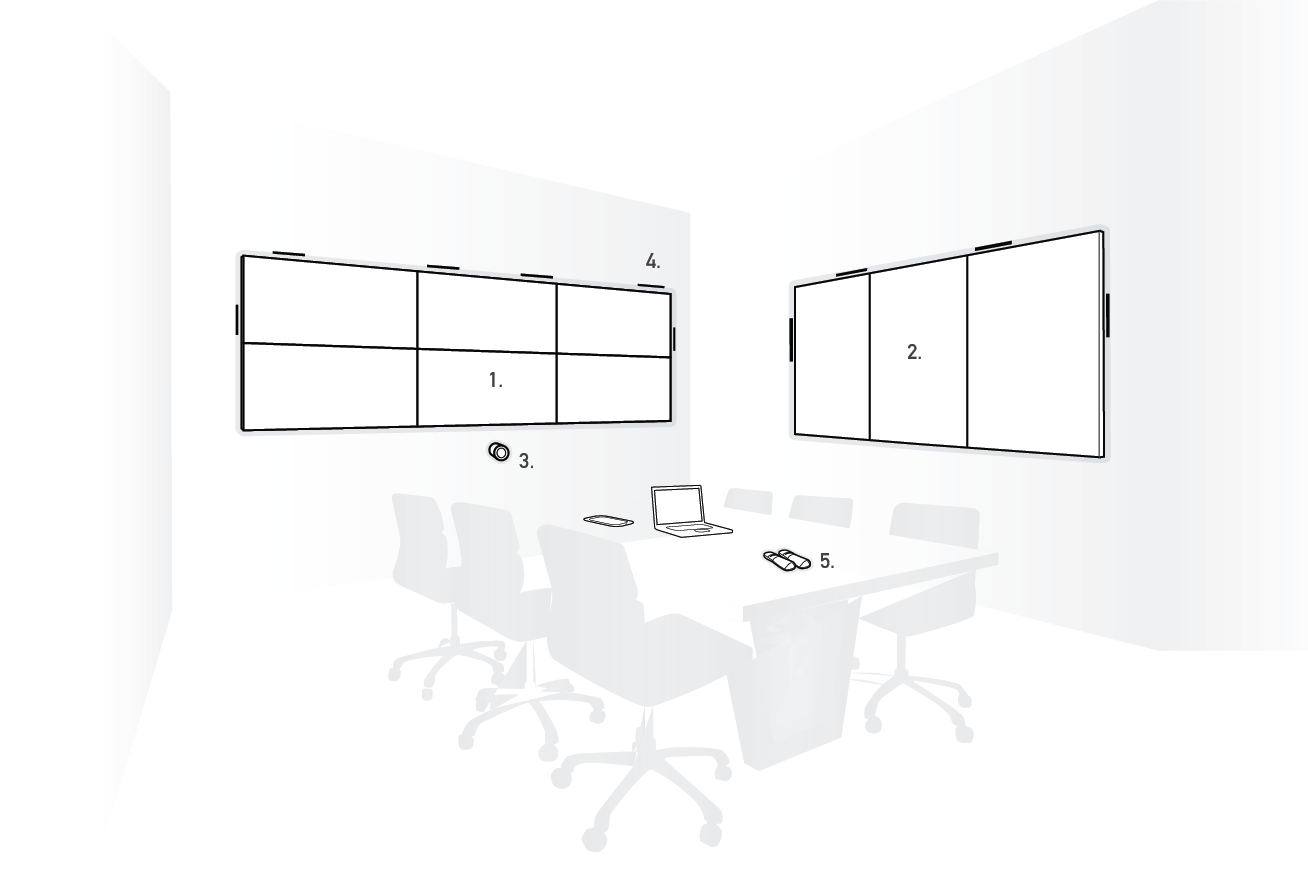

Mezzanine 650 Series Kit

  1. Mezzanine Appliance (1)

    The hub of the Mezzanine experience. Drive two displays with a Mezzanine mini appliance. Includes video input and output support.

  2. Tracking System
    (see below for more info)

    Available options: Optical, Ultrasonic

  3. Whiteboard Camera (1)

    An IP camera used to stream or capture an analog whiteboard surface. (Model: Avigilon 5.0L-H4A-B3)

Mezzanine 650 Series Kit: Optical Tracking

  1. Perception Appliance (1)

    The hub for all optical tracking data.

  2. Optical Wands (2)

    A gestural control device used to control the Mezzanine Workspace.

  3. Bluetooth LE Receiver (2)

    Bluetooth LE radio receiver used to communicate with the wands.

  4. Tags
    (2-4 tags / display)

    Display mounted array of IR LEDs used to enable the gestural control of Mezzanine. Each tag consists of six LED markers.

Mezzanine 650 Series Kit: Ultrasonic Tracking

  1. Ultrasonic Wands (2)

    A gestural control device used to control the Mezzanine Workspace.

  2. Base Receiver (USA: 1 / Outside of USA: 2)

    A radio receiver used to communicate with the wands.
    Available in: 900MHz USA, 2.4GHz outside of USA.

  3. Emitters (Up to 72)

    Ceiling mounted sensors used to enable the gestural control of Mezzanine.

  4. Power Support (1)

    UPS1000W/1440VA

Peripherals (Sold Separately)

  1. Displays & Mounts (6 or more)

    Recommended sizes: 55” – 85”
    Minimum size: 55”

  2. Video Teleconferencing (1)

    Standards-based VTC System
    Preferred integration: Cisco, Polycom, Lifesize

  3. PoE Network Switch (1*)

    8-port (minimum) PoE network switch in support of Mezzanine’sDevice Network

  4. Audio System
    (as needed)

    Speakers and Amplifier

  5. Power Support
    (as needed)

    Power Distribution Unit
    UPS: 1000W / 1440VA

  6. Rack (1)

    Customer or Reseller to provide 10U of rack space

  7. Cabling
    (as needed)

    HDMI, Audio, Power, Ethernet cabling
    HDBaseT extenders for server room deployments

* Optical Tracking enabled systems only
